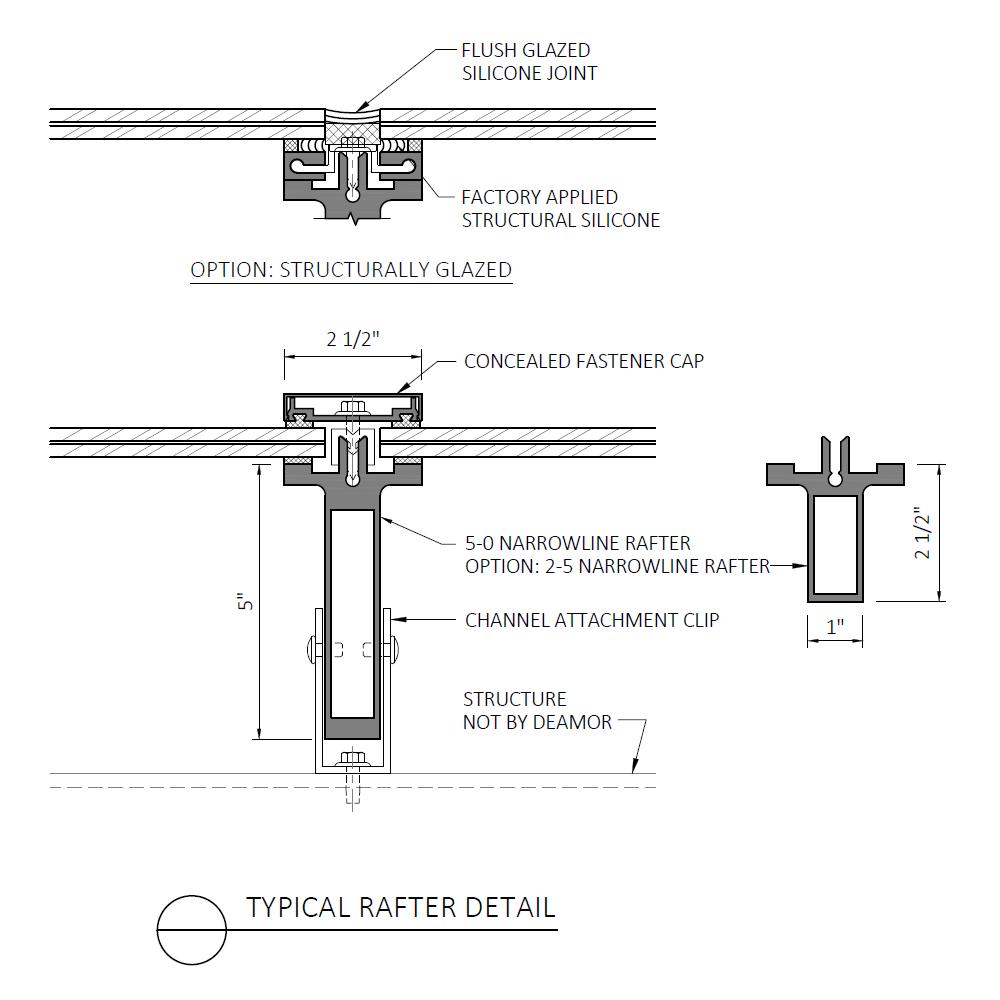

- “T” Profile with 1” bottom creates a light appearance
- Excellent span capacity on top of horizontal structure with varying depths for span and loads

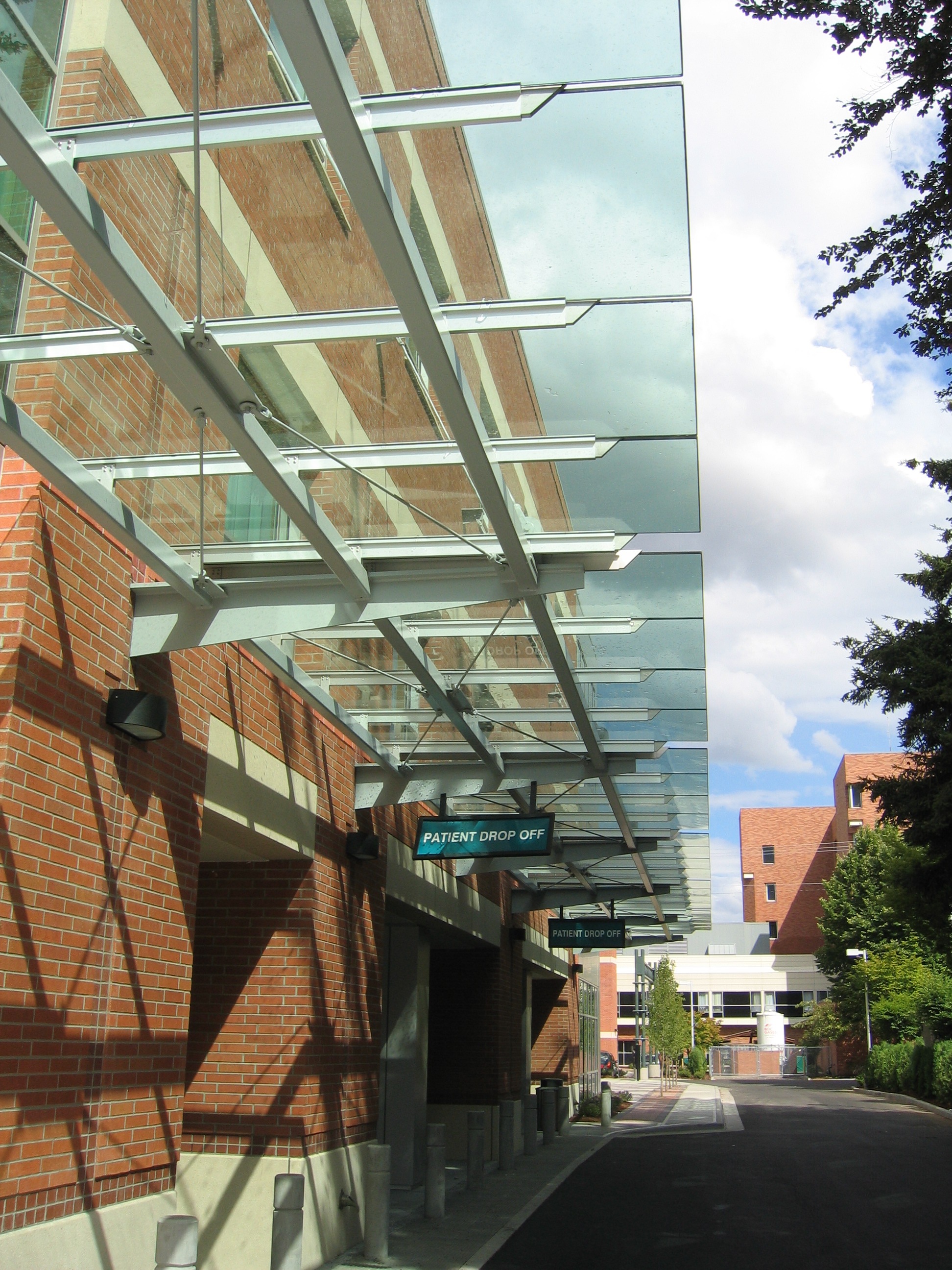

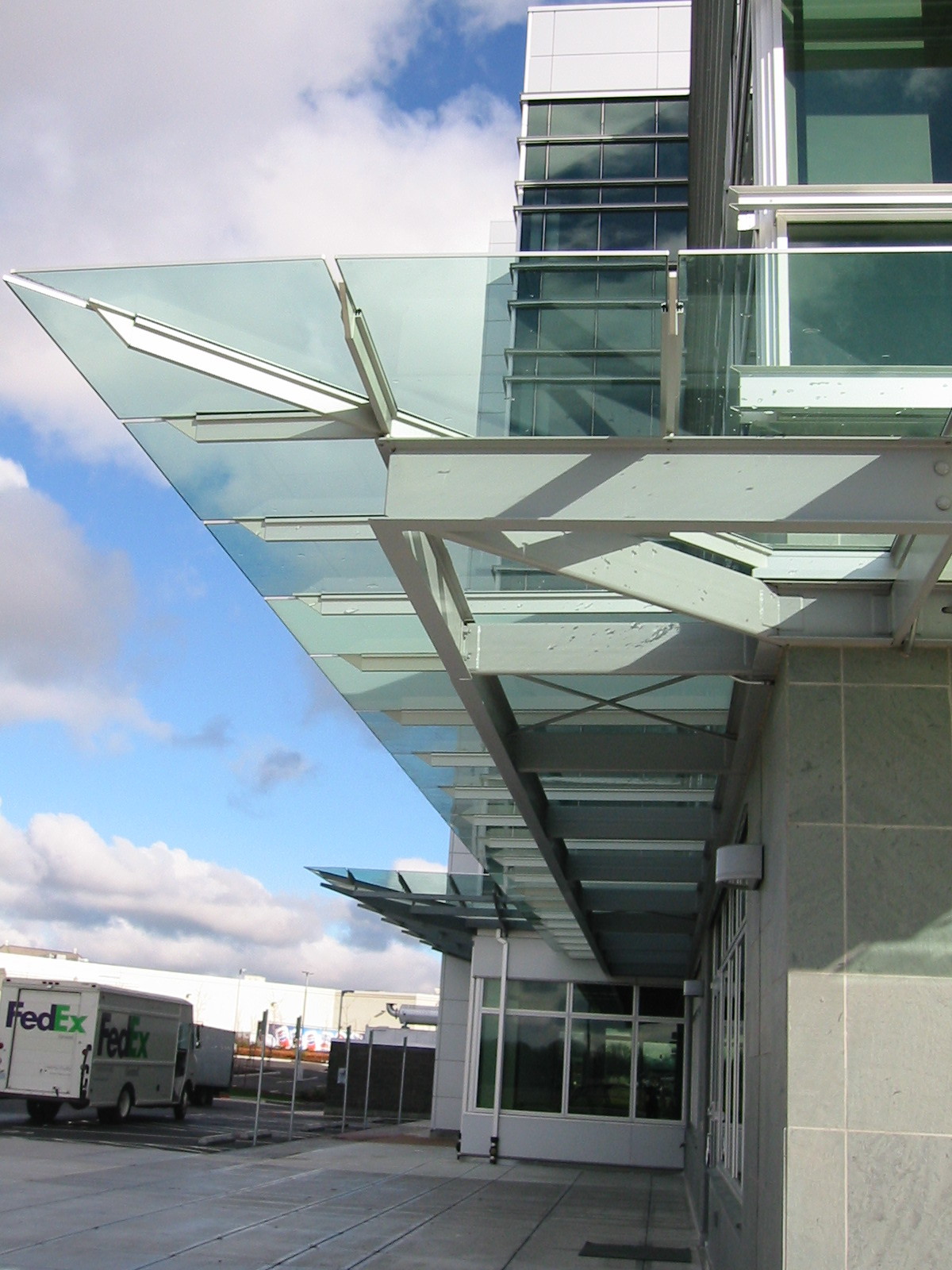

- Cantilever the rafter beyond structure —and cantilever the glass for a light leading edge

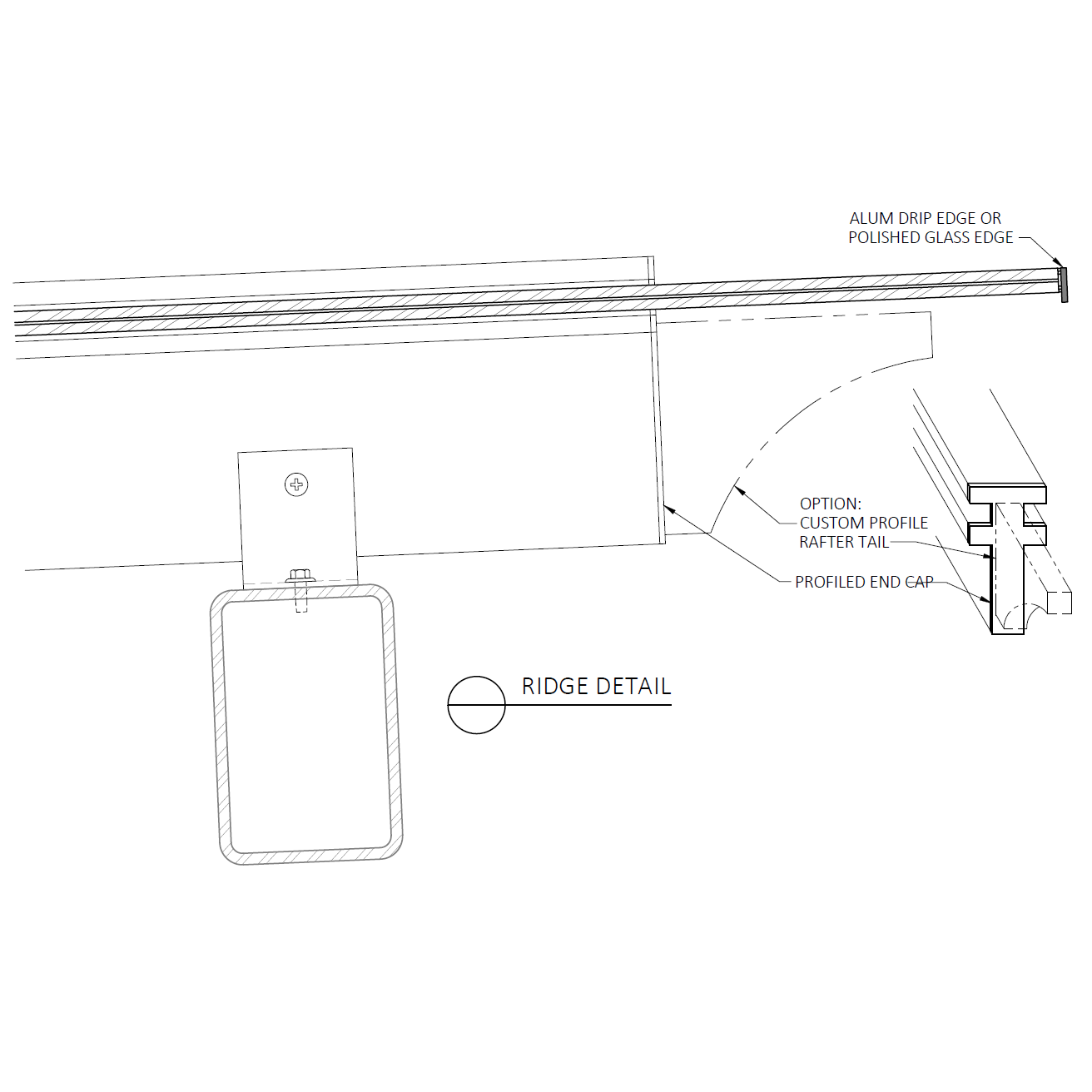

- Shaped inserts create a signature profile at the top and bottom of the rafter
- Gutters are easily integrated in the system – square, round, rectangular – your design!

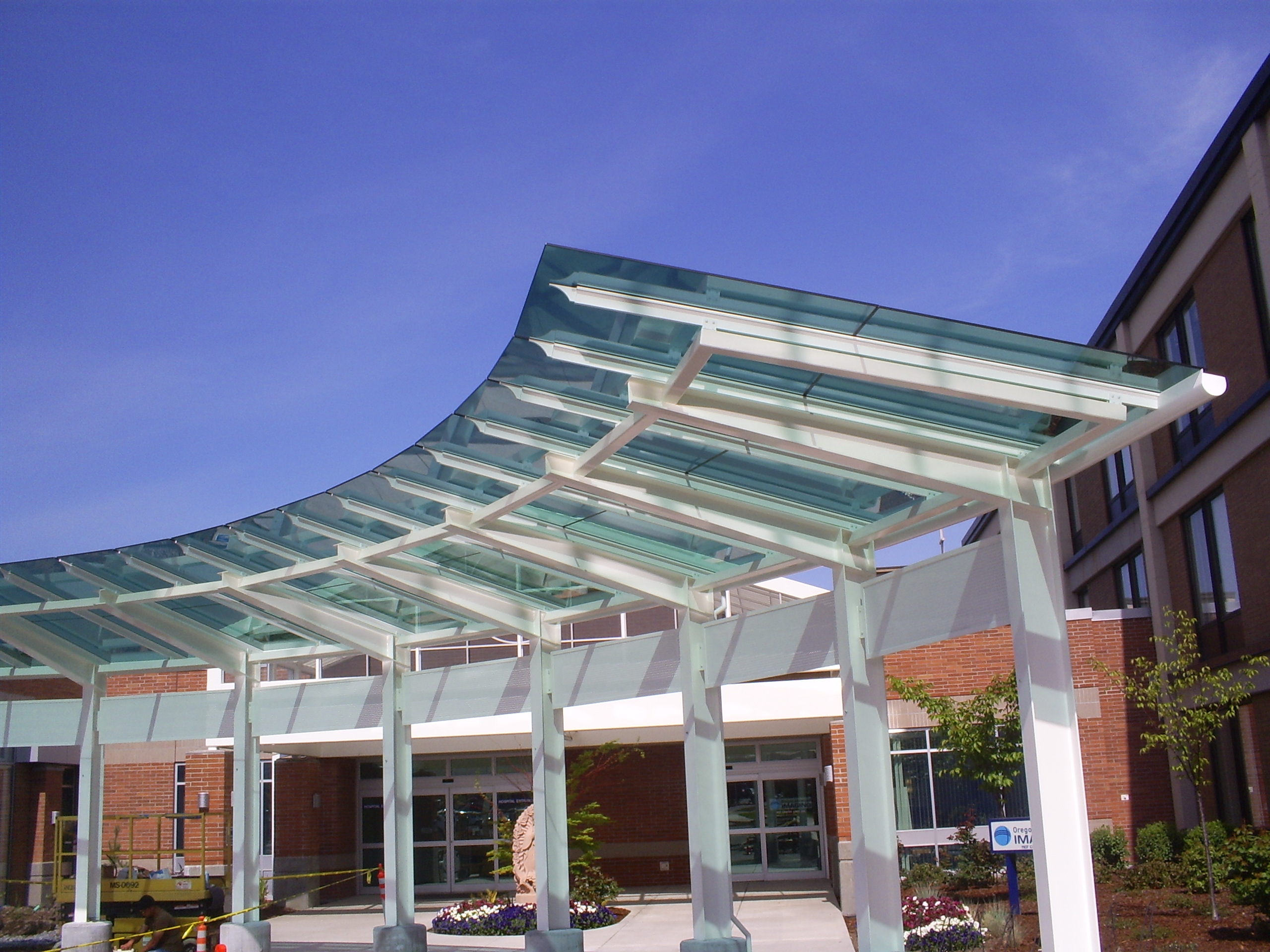

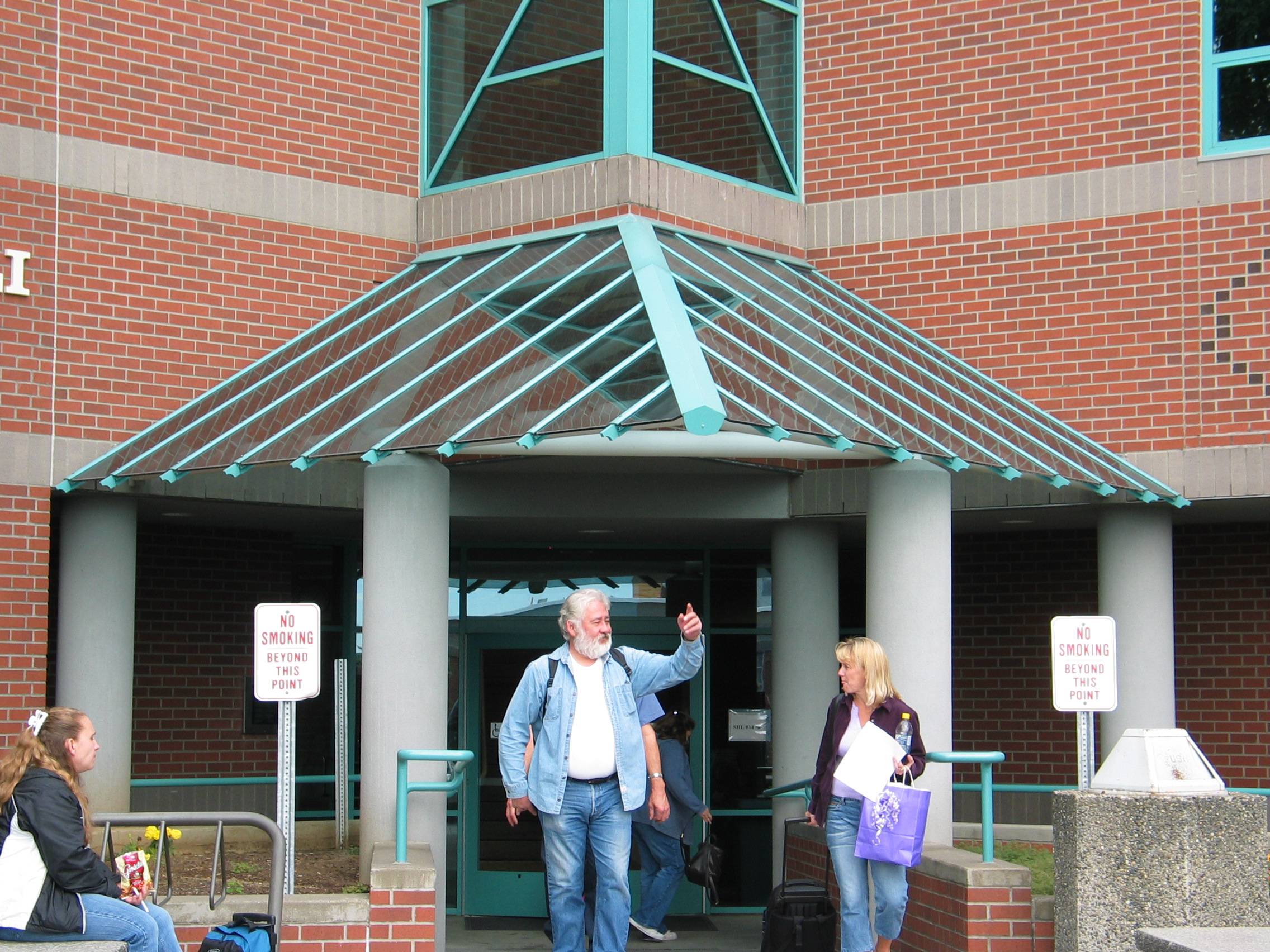

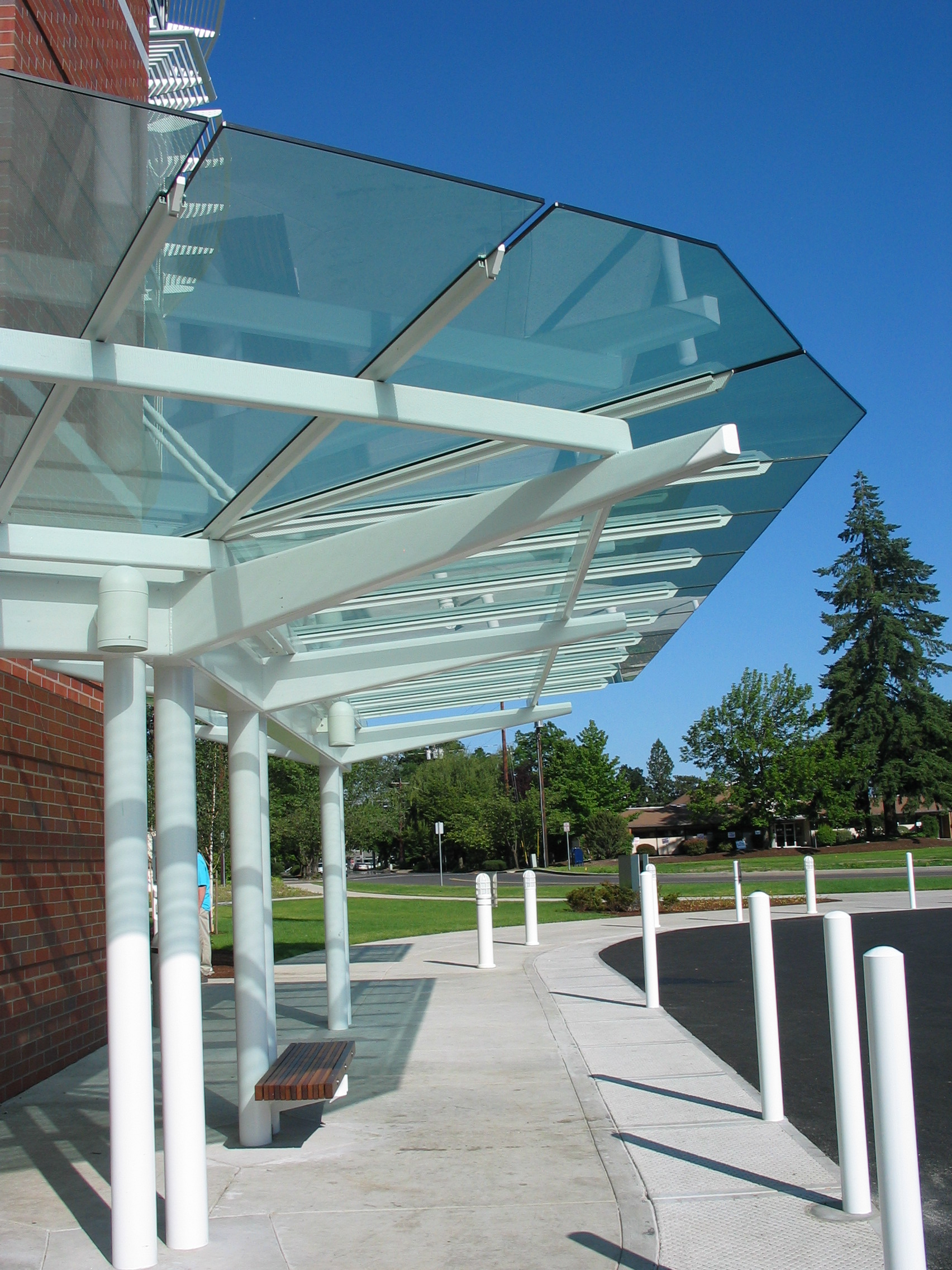

- Radial plan shapes are easily accomplished
- Tolerances for structure are accommodated to create a sleek straight leading edge
- Finish aluminum with an anodized or fluoropolymer coating
- Cap the glass or structurally glaze with flush seals

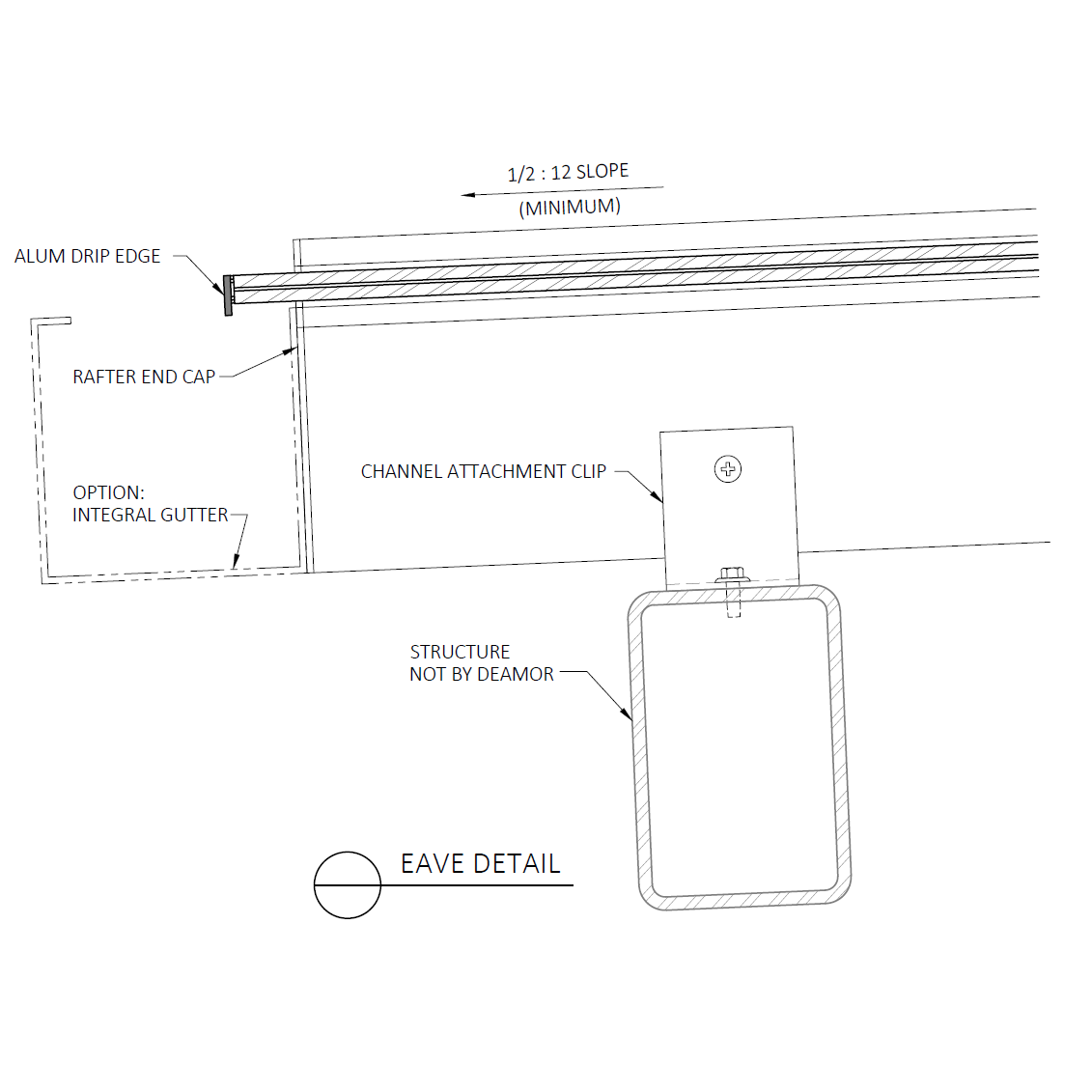

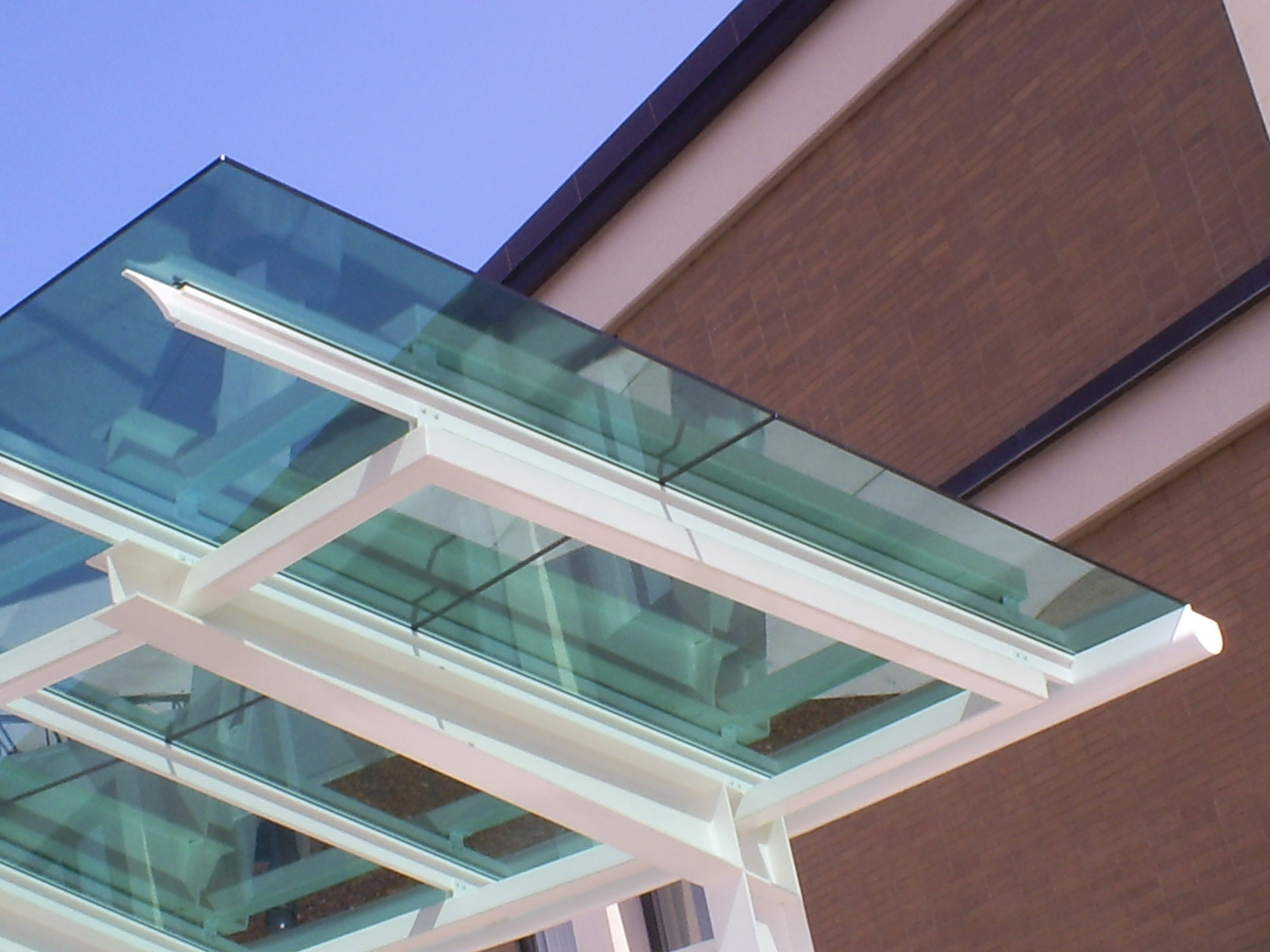

- Glass is sloped and engineered to prevent water ponding and create a straight leading edge
- Glass edge finish options
- Polished flat with aris
- Protected with flat bar band in anodized aluminum or stainless
Click for detailed view.
Performance is in the Detail!
